Specifications

CPU	Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Celeron dual-core/Celeron processors Compatible with Intel® 05B/05A/06 processors Support Intel® 45nm Multi-Core CPU
Chipset	Intel® P45 / ICH10 with Intel® Fast Memory Access Technology
Front Side Bus	1600/1333/1066/800 MHz
Memory	4 x DIMM, Max. 16 GB, DDR2 1200/1066/800 Non-ECC,Un-buffered Memory Dual Channel memory architecture Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists) *When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended
Expansion Slots	1 x PCIe 2.0 x16 2 x PCIe x1 3 x PCI
Storage	Southbridge 6 xSATA 3 Gb/s ports Marvell 88SE6102 PATA controller 1 xUltraDMA 133/100/66 for up to 2 PATA devices
LAN	Realtek 8111C, PCIe Gb LAN controller featuring AI NET 2
Audio	VIA VT1708S 8 -Channel High-Definition Audio CODEC - Support Jack Detection and Multi-streaming - Coaxial S/PDIF out ports at back I/O - ASUS Noise-Filtering
USB	12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features	ASUS Power Saving Solution - ASUS AI Nap ASUS AI Lifestyle - ASUS Express Gate ASUS Crystal Sound - ASUS Noise Filter ASUS EZ DIY - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Overclocking Features	Intelligent overclocking tools - ASUS AI Booster Utility Precision Tweaker - vDIMM: 6 -step DRAM voltage control - vCore: Adjustable CPU voltage at 6.25 mV increment SFS (Stepless Frequency Selection) - FSB tuning from 200MHz up to 600MHz at 1 MHz increment - PCI Express frequency tuning from 100MHz up to 160MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports	1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Coaxial S/PDIF Out 1 x LAN (RJ45) port 6 x USB 2.0/1.1 8-channel Audio I/O
Internal I/O Connectors	3 x USB connectors support additional 6 USB ports 1 x Floppy disk drive connector 1 x IDE connector 1 x COM connector 6 x Serial ATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x Front panel audio connector 1 x S/PDIF Out Header 1 x Chassis Intrusion connector 1 x CD audio in connector 24-pin ATX Power connector 1 x 4-pin ATX 12V Power connector 1 x System Panel connector
BIOS	8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories	1 x UltraDMA 133/100/66 cable 2 x Serial ATA cables I/O Shield User's manual * Note: The floppy disk drive cable is purchased separately
Support Disc	Drivers ASUS PC Probe II ASUS Update ASUS Express Gate ASUS Ai Suite Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )

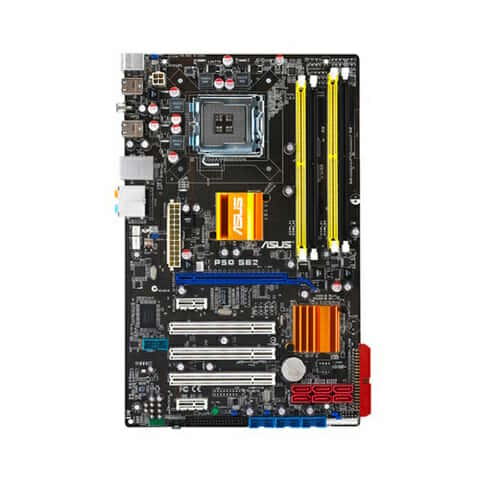

مادربورد ایسوس P5Q SE2
