- AMD Phenom™ II,Athlon™ II processors ,Socket AM3 with HT1.0 interface
- 2000 MT/s HyperTransport™
- Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB
- 1* PCIe x16, 1* PCIe x1, 2* PCI
- ATA 133 x 1, SATAII x 4
- 5.1 channel HD Audio
- Gigabit LAN
- 10 USB 2.0 ports

Processor:	AMD Phenom™II.Athlon™II processors, Socket AM3
Chipset:	AMD® 740G + SB710
Front Side Bus:	2000 MT/s HyperTransport
Memory:	Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB
VGA on Die:	Integrated ATI® Radeon™ 2100 graphic
Expansion Slots:	1* PCIe x16, 1* PCIe x1, 2* PCI
IDE:	ATA 133 x 1
Serial ATA(SATA)/RAID:	SATAII x 4 w / RAID 0, 1, 10
Audio:	5.1 channel HD Audio
LAN:	Gigabit LAN
IEEE1394:	N/A
Back Panel I/O Ports:	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x DVI port 1 x VGA port 1 x Audio jack supports 3 jacks 4 x USB 2.0 ports 1 x RJ45 LAN port
Internal I/O Connectors:	1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU / System FAN connectors 1 x ATA133 IDE connector 1 x CD-in connector 1 x Front Audio header 1 x Front Panel header 3 x USB 2.0 headers support additional 6 ports 4 x Serial ATAII connectors 1 x Intrusion Alarm header 1 x S/PDIF out header 1 x COM header 1 x Speaker
BIOS Features:	8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD:	Drivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability:	PCI 2.3, USB2.0, DMI 2.5
Form Factor:	Micro ATX ( 9.6" x 8.4")

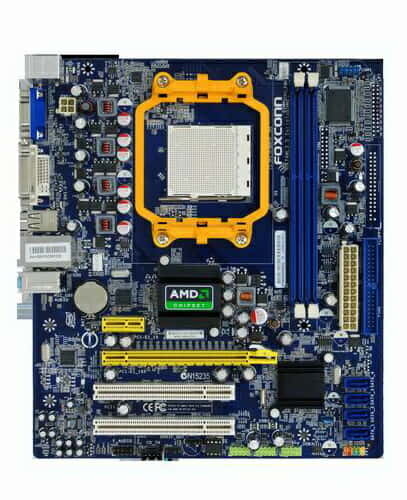

مادربورد فاکسکان A74ML-K 3.0
