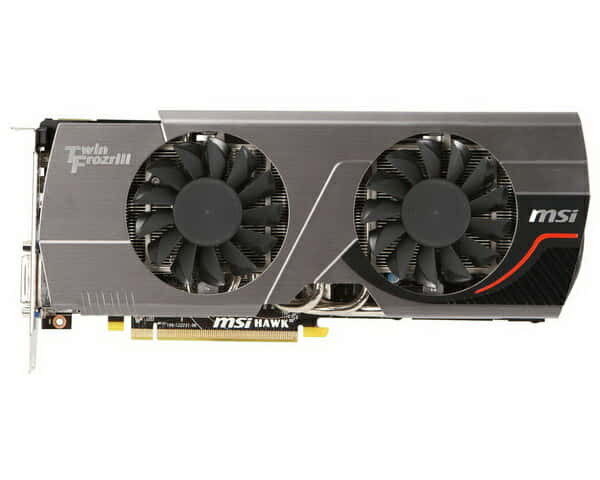

Graphics Engine	AMD Radeon HD 6870
Interface	PCI Express x16 2.1
Memory Type	GDDR5
Memory Size(MB)	1024
Memory Interface	256 bits
Core Clock Speed(MHz)	930
Memory Clock Speed(MHz)	4200
Memory Bandwidth(GB/sec)	N/A
Texture Fill Rate(billion/sec)	N/A
DVI Output	Single-Link DVI-D x1, Dual-Link DVI-I x1
D-SUB Output	1 (optional, via DVI to D-Sub adaptor)
HDMI-Output	1
Mini HDMI-Output	N/A
DisplayPort	N/A
Mini DisplayPort	2
TV-Output	N/A
VIVO(Video-in/out)	N/A
HDTV Support	N/A
HDCP Support	N/A
HDMI Support	N/A
Dual-link DVI	N/A
Display Output (Max Resolution)	4x 1920x1200
RAMDACs	400
DirectX Version Support	11
OpenGL Version Support	4.0
CrossFire Support	Y
SLI Support	N/A
3-way SLI	N/A
HyperMemory Tech.	N/A
TurboCache tech.	N/A
Card Dimension(mm)	255 x 115 x 38mm
Weight	N/A

Key Features

Propeller Blade on Twin Frozr III
- The special blade design generates 20% more airflow than traditional design.
- The airflow covers wider area for the better heat dissipation.
- 21℃cooler & 7dB quieter than reference design!!!
Triple Over voltage by Afterburner
- World’s first HD 6870 graphics card supporting voltage adjustment of GPU/Memory/VDDCI.
- The performance can be boosted up!!
8+2 Phase PWM Design
- 8+2 Phase PWM design provides extra 80A current output power to GPU for better overclocking power capability.
Military Class II Components
- SFC (Super Ferrite Choke) has higher current for better overclocking ability.
- Hi-C CAP for GPU provides more precise voltage.
- All Solid CAPs have longer lifespan.

Video Output Function

Bundle MSI developed software

MSI VGA Driver
MSI Live Update Series (Live VGA BIOS & Live VGA Driver)
Automatically online download & update VGA BIOS & Drivers, reduce the risk of getting the wrong files, and never have the trouble on web site searching.
MSI Live
MSI Live including all real time life information you need, such as Live MSI Product News, Live Daily Information, Live Personal Schedule Manager, Live Search and more.
Adobe Acrobat Reader
Microsoft® DirectX
Norton Internet Security™ 2008 60 days Trial
-Blocks online identity theft by phishing Web sites
-Detects and eliminates spyware
-Removes viruses and Internet worms automatically
-Protects against hackers
