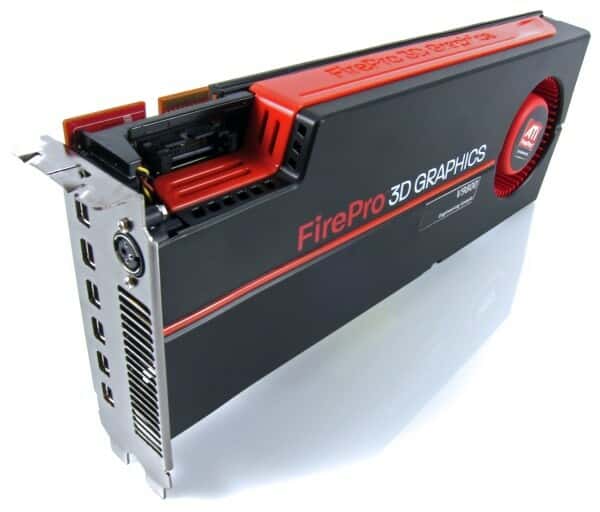

The ATI FirePro™ V9800 is the most advanced ATI FirePro™ professional graphics solution ever created by AMD. Suited for professionals who work with the largest data sets and the most intensive 3D environments, the ATI FirePro™ V9800 delivers the ultimate in computational power and performance.

Supported by a massive 4GB memory capacity and 1600 stream processors, the ATI FirePro™ V9800 also offers unparalleled productivity innovation with ATI Eyefinity support for up to six independent displays from a single graphics card, ensuring that your creativity is never inhibited by a lack of work space.¹

Industry’s most powerful workstation graphics with 1600 stream processors²
Double the computing capability over prior generation³
4GB GDDR5 memory
AutoDetect technology instinctively optimizes performance for multi-application workflow
Hardware acceleration and support for advanced features of DirectX^® 11 and OpenGL 4.1^®
3D Stereoscopic support⁴
Framelock/Genlock support⁵
ATI CrossFire™ Pro Support⁶
Optimized and certified for many major CAD and DCC applications
PCI Express^® 2.1 compliant

GPU

Stream Processors: 1600
Memory Interface: 256-bit

Memory

Size/Type: 4GB GDDR5

Display Outputs

Mini DisplayPort: 6
Max Resolution: 2560x1600 @ 60Hz
Stereo (3-pin DIN): Yes

API/Feature/OS Support

DirectX^®: 11.0
OpenGL^®: 4.1
Shader Model: 5.0
: Yes
ATI CrossFire™ Pro Support⁸: Yes
ATI FirePro™ S400 Synchronization Module Support (for Framelock/Genlock): Yes
OS Support: Microsoft^® Windows^® 7, Windows^® XP, Windows Vista^®, Linux^®6 (32-bit or 64-bit)

Thermal/Power/Form Factor

Max Power: <225 W
Slots: 2
Form Factor: Full Height / Full Length
Support Energy Star^® 5.0 Compliance: Yes
Bus Interface: PCI Express^® 2.1 x16

Additional Details

System Requirements

512MB of system memory
CD-ROM drive (or internet access) for software installation
Power supply with one 2x3 and one 2x4 auxiliary power connectors
Windows^® 7 / XP / Windows Vista^® or Linux®⁹ (32-bit or 64-bit)
Available PCI Express® 2.1 x16 slot (double wide)

ATI Eyefinity Technology
Industry-leading multi-display technology enabling a highly immersive and unrivaled graphics/computing experience across up to six simultaneous and independent displays from a single ATI FirePro™ V9800 graphics card.¹

AutoDetect Technology
As a user moves between applications, or opens new ones, the graphics driver settings are automatically configured for optimized performance.

Full 30-bit Display Pipeline⁷
Enables more color values than 24-bit products for more accurate color reproduction and superior visual fidelity.

Full Shader Model 5.0 Support
Helps create highly complex geometry and scenes without taxing the CPU.

Certification
Ensure compatibility, reliability and the highest level of performance when used with professional 3D software packages.

DirectX^® 11 and OpenGL^® 4.1 Advanced Features
Enables optimal performance in leading applications.

3D Stereoscopic Support
Effortlessly work in stereo with support for 3-pin active sync stereoscopic glasses.⁴

Framelock/Genlock support
For smooth multi-display visualization.⁵
