Key Features

1. Intel® Core™ i7 / i7 Extreme Edition,
    and Intel® Xeon® 5600/5500/3600/3500
    series processors (QPI up to 6.4 GT/s) 2. Intel® X58 Express Chipset 3. Up to 24GB DDR3 1333, 1066 & 800
    ECC / non-ECC Un-Buffered DIMM 4. Dual Intel® 82574L Gigabit
    Ethernet Controller 5. LSI 1068E 8-Port SAS Controller;
    RAID 0, 1, 10 6. 6x SATA (3.0Gbps) Ports
    RAID 0, 1, 5, 10 7. 3 (x8) PCI-Express 2.0 (1 in x16 slot),
    1 (x4) PCI-Express (using x8 slot),
    2x 32-bit PCI Slots 8. Integrated IPMI 2.0 with Dedicated LAN 9. 8x USB (2 rear, 2 on-board, 2 headers)

Specification

Product SKUs

MBD-X8ST3-F -O	X8ST3-F (Standard Retail Pack)
MBD-X8ST3-F -B	X8ST3-F (Bulk Pack)


Physical Stats

Form Factor	ATX
Dimensions	12" x 10" (30.5cm x 25.4cm)


Processor/Cache

CPU	LGA 1366 Socket Intel® Core™ i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition Intel® Core™ i7 series Intel® Xeon® 5600/5500 series Intel® Xeon® 3600/3500 series
System Bus	QPI (up to 6.4 GT/s)


System Memory

Memory Capacity	Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory Three Channel memory bus 6 DIMM sockets
Memory Type	1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	256MB, 512MB, 1GB, 2GB, 4GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)


On-Board Devices

Chipset	Intel® X58 Express chipset ICH10R
SAS	LSI SAS1068E RAID 0, 1, 10 support (Optional: AOC-IButton68) RAID 5 support
SATA	Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Winbond® WPCM450 BMC
Network Controllers	2x Intel® 82574L Gigabit Ethernet Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	Matrox G200eW 16 MB DDR2
Super I/O	Winbond 83627DHG chip
Clock Generator	CK505


Input / Output

SAS	8 SAS / SATA ports
Serial ATA	6 SATA ports 6 SATA hard drives supported
Floppy	1 Floppy controller; 1.44 MB
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB rear ports 2x USB on-board 2x USB internal headers (4 ports) Total 8 USB 2.0 Compliant
VGA	1x VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1x Fast UART 16550 serial port 1x internal header

Expansion Slots

PCI-Express	3 (x8) PCI-e 2.0 slots (1 using x16 slot) 1 (x4) PCI-e slot (using x8 slot)
PCI	2x 32-bit PCI slot


System BIOS

BIOS Type	32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3


Management

Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Wake-On-LAN (WOL) header Keyboard Wakeup from Soft-Off Power-on mode for AC power recovery Internal/External modem ring-on


PC Health Monitoring

Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of five fan headers supporting up to 5 fans Five 4-pin fan headers 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED
Other Features	Chassis intrusion detection Chassis intrusion header


Operating Environment / Compliance
RoHS
Environmental Spec.	Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)

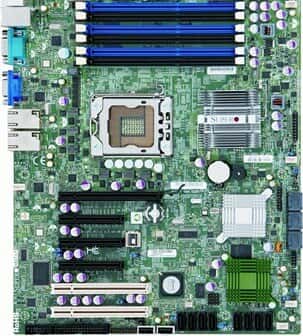

مادربورد سرور سوپرمایکرو X8ST3-F
