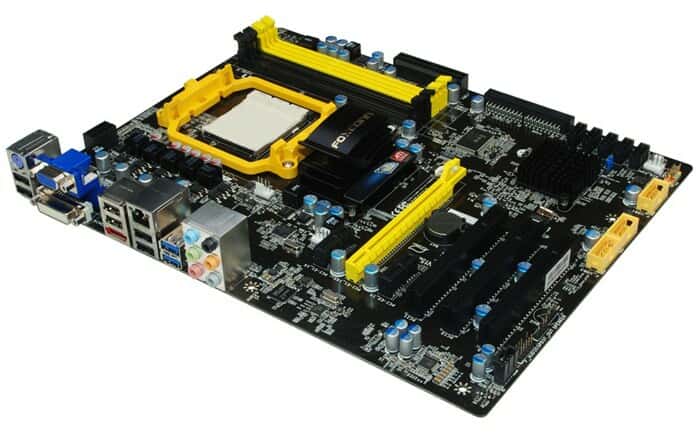

A88GA-S

AMD Phenom™ II processor,Socket AM3 with HT3.0 interface
4.4 GT/s HyperTransport™
Dual channel DDR3 1600(oc)/1333/1066 x 4 DIMMs, Max 16GB
1* PCIe 2.0 x16, 2* PCIe 2.0 x1, 3* PCI
SATAII x 5,eSATA x 1
7.1 channel HD Audio
Gigabit LAN

10 USB 2.0 ports，2 USB 3.0 ports

The A88GA-S offers enhanced connectivity and entertainment capability, backed-up by high-performance features and components. Based on the AMD® 880G and SB710 chipset with an advanced DirectX 10.1 graphics engine with AMD UVD 2.0 technology. UVD supports Blue-Ray and HD-DVD content, whilst offloading power and processor-intensive video decoding from the CPU to the graphics core.Supporting AMD the latest Phenom™II processors with HT3.0 technology,USB 3.0 and supports Dual DDR3 1600MHz(overclocking) memory for better overall system performance.enabling support for ATI™ Hybrid graphics technology with integrated RadeonTM HD4250 graphics . The A88GA-S is designed for supporting CoreRelease technology.

Supports socket AM3 processor with HyperTransport™ 3.0 interface,Designed to support the latest AMD Phenom™ II processors and CoreRelease technology.

HyperTransport™ 3.0 technology provides incredible system agility for improved 3D graphics performance. HT3.0 provides an aggregate bandwidth of 41.6GB/s which means much greater data transfer capability between CPU and system.

AMD® 880G chipset with SB710 southbridge
Designed to power your ultimate entertainment PC.

ATI Radeon™ HD 4250 graphics engine
   Supports DirectX 10.1
   Supports AMD UVD2.0 (Unified Video Decoder - a H/W decoder for H.264, VC-1 and mpeg-2 video formats)
   Supports DVI/HDCP

ATI™ Hybrid Graphics
ATI Hybrid Graphics technology automatically improves system performance by enabling the ability for both discrete graphics and integrated graphics to render simultaneously – further increasing graphics firepower. With the discrete graphics card installed, the PC can be configured to support up to 4 displays with the ATI SurroundView™ feature.

Ready to play Blu-Ray & HD-DVD
Onboard ATI Avivo™ HD 1 technology *, an advanced image and video processing system, improves the playback of Blu-ray™ and HD DVD content, rivaling high-end HD players even at 1080i resolution.

1* PCIe x16 & 1* PCIe x1 Gen2.0 slots
PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth; 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe “Gen1” cards can be plugged into Gen2.0 slots.

Dual-channel DDR3 1600(oc)/1333/1066 MHz memory, 16GB Max.
Enjoy a faster, smoother, more productive computing experience with capacity for up to 16GB of DDR3 memory!

7.1 Channel HD Audio
8 channel high definition audio delivers a convincing surround sound experience for games and movies.

Gigabit LAN

Gigabit LAN interface provides for high-speed network connections, with a data transfer rate up to 1000Mb/s - ideal for streaming multi-media content online.

SATA

5* SATAII connectors provide for fast, reliable and adaptable storage capability.

RAID 0, 1, 0+1
Configure multiple hard drives for enhanced performance or data security.

USB 2.0

A total of 10* USB2.0 ports (6 rear-mounted) allow you to connect a huge range of devices.

USB 3.0

2 USB 3.0 ports on rear panel transfer rate can up to 5Gbps.

Windows Vista™ Premium Certified
Microsoft Windows Vista™ is designed to dramatically improve the computing experience of every kind of PC user—from people at home who use their PCs for simple web browsing, to business people who must organize and act on large volumes of data, to scientists who routinely perform complex mathematical analysis.

EasyPin

Colour-coded EasyPin headers enable quick connection of internal devices.

Processor	AMD Phenom™ II processor, Socket AM3
Chipset	AMD® 880G + SB710
Front Side Bus	4.4 GT/s HyperTransport
Memory	Dual channel DDR3 1600(oc)/1333/1066 x 4 DIMMs, Max. 16GB
VGA on Die	Integrated ATI® Radeon™ HD4250
Expansion Slots	1* PCIe 2.0 x16, 2* PCIe 2.0 x1, 3* PCI
IDE	ATA133 x 1
Serial ATA(SATA)/RAID	SATAII * 5 + eSATA * 1 w / RAID 0, 1, 10
Audio	7.1 channel HD Audio
LAN	Gigabit LAN
IEEE1394	N/A
Back Panel I/O Ports	1 x PS/2 keyboard port 1 x VGA port 1 x DVI-D port 1 x eSATA port 1 x Audio jack supports 6 jacks 6 x USB 2.0 ports 2 x USB 3.0 ports 1 x RJ45 LAN jack
Internal I/O Connectors	1 x ATX 24-pin power connector 1 x 8-pin ATX 12V power connector 3 x 4-pin CPU/NB/System Fan connectors 1 x CD-in connector 1 x Front Audio header 1 x Front Panel header 2 x USB 2.0 connectors support additional 4 ports 1 x ATA133 IDE connector 5 x SATAII connectors 1 x Intrusion Alarm header 1 x Speaker header 1 x S/PDIF Out header
BIOS Features	16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD	Drivers, DirectX10.1, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability	PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor	ATX ( 12.0" x 9.3")
