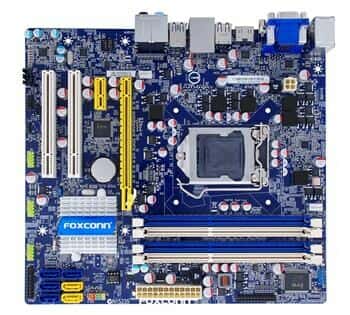

H67M-S

Intel® Sandybridge processors, Socket LGA1155
Supports Intel® 32nm Hi-K CPU
Dual channel DDR3 1333/1066 x 4 DIMMs, Max. 32GB
1* PCIe2.0 x16, 1* PCIe x1 ,2* PCI
4* SATA II , 2* SATA III
7.1 channel HDA
Gigabit LAN
12 USB 2.0 ports ,2 USB 3.0 ports
Performance segement MB,target to meet DDR3 platform demands of enthusiasts and gamers.support LGA1155 for Intel®sandybridge processors with H67 single chipset .the H67M-S allows you to build powerful PCs on a budget. Supportting 2 channel 4 DIMMs DDR3 memory up to 32GB at 1333MHz,it is the best MB to build HTPC with DVI and HDMI integrated.Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista™ certified and Windows 7 ready motherboard.

Processor	Intel® Sandybridge processors, Socket LGA1155 Max. 95W
Chipset	Intel® H67
Front Side Bus
Memory	Dual channel DDR3 1333/1066 x 4 DIMMs, Max.32GB
VGA on Die	Integrated Intel® GMA HD graphics engine
Expansion Slots	1* PCIe2.0 x16, 1* PCIe x1,2* PCI
IDE	N/A
Serial ATA(SATA)/RAID	4* SATA II + 2* SATA III w / RAID 0, 1, 0+1, 5; Intel® Matrix storage technology
Audio	7.1 channel HDA
LAN	Gigabit Lan
IEEE1394	N/A
Back Panel I/O Ports	1 x PS/2 keyboard port 1 x VGA port 1 x DVI port 1 x HDMI port 1 x Audio jack supports 6 jacks 1 x RJ45 LAN port 6 x USB 2.0 ports 2 x USB 3.0 ports
Internal I/O Connectors	1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU FAN connectors 1 x 4-pin System FAN connector 1 x Front pannel header 1 x Front Audio header 1 x Parallel header 1 x COM header 1 x TPM header 3 x USB 2.0 connectors support additional 6 ports 4 x Serial ATAII connectors 2 x Serial ATAIII connectors 1 x Intruder Alarm headers 1 x S/PDIF out header 1 x CLR_CMOS header 1 x CD-IN header 1 x Speaker header
BIOS Features	64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD	Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability	PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor	Micro ATX (9.6" x 8.8")
