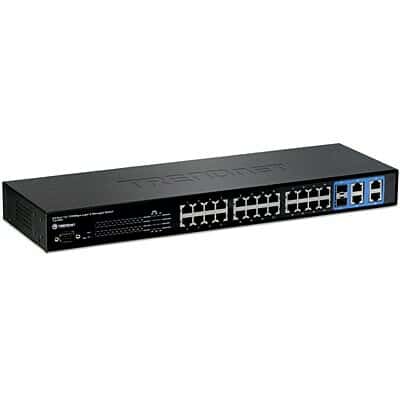

24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
TL2-E284 (Version v1.0R)

SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support
24 x 10/100Mbps Auto- MDIX ports
4 x Gigabit ports, 2 x shared SFP slots, and 1 x RS-232 console port
12.8Gbps switching capacity
Supports Port Trunking, Mirroring, IGMP, VLAN, RMON, QoS, STP, and more

The 24-Port 10/100Mbps Layer 2 Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots, model TL2-E284, provides a reliable foundation for a highly scalable managed network.

The TL2-E284 features a 12.8Gbps switch fabric, 802.1X authentication, SNMP v3, and Multiple Spanning Tree (MSTP) support.

Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17 unique switching parameters. Additional management features such as Port Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON, QoS, and RSTP allow administrators to effectively manage departmental work groups.

24 x 10/100Mbps Auto-MDIX Fast Ethernet ports
4 x 10/100/1000Mbps Auto-MDIX Gigabit ports
2 x shared SFP (Mini-GBIC) slots
1 x RS-232 console port
8K MAC address entries
256KByte data RAM buffer
802.1Q Tagged VLAN, Dynamic VLAN Learning GVRP, and Asymmetric VLAN (Up to 256 VLAN Groups)
Spanning Tree Protocols: 802.1d STP, 802.1w RSTP, and 802.1s MSTP
Quality of Service (QoS): Port-based QoS, bandwidth rate control, IEEE 802.1p, and DSCP
802.1X Port-Based Access Control and RADIUS Authentication
IGMP snooping v1/2 (Up to 64 entries)
Link Aggregation and Port Trunking: Static and 802.3ad Dynamic LACP
Store-and-Forward switching method
802.3x Flow Control for full duplex and backpressure for half duplex operation
Broadcast, Multicast, and DLF(Destination Lookup Failure) Storm Filtering protection
Supports port status control (enable/disable, auto-negotiation, speed, duplex, and flow-control)
Port Mirroring for network traffic analysis
Syslog support for external device logging
Switch management with:
- SNMP v1, v2c, v3
- Telnet
- SSH
- Console (RS-232)
- HTTP/HTTPS web browser
- RMON (4 groups)
19” (1U) Rack mount design with mounting hardware included

Hardware
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X SX/LX IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Link Aggregation/Port Trunking (LACP) IEEE 802.1d Spanning Tree (STP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1p Quality of Service/Class of Service (QoS/CoS) IEEE 802.1Q VLAN Tagging and GVRP IEEE 802.1X Port-Based Network Access Control
Interface	24 x 10/100Mbps Auto-MDIX Fast Ethernet ports 4 x 10/100/1000Mbps Auto-MDIX Gigabit ports 2 x shared SFP (Mini-GBIC) slots 1 x RS-232 console port for switch management
Cabling	Network: 10Base-T: UTP/STP Cat. 5 cable (100m) 100Base-TX: UTP/STP Cat. 5, 5e cable (100m) 1000Base-T: UTP/STP Cat 5e, 6 cable (100m) Mini-GBIC: LC (Multi-Mode): 50/125um~62.5/125um LC (Single Mode): 9/125um~10/125um
Switching Method	Store-and-Forward
Protocol/Topology	(CSMA/CD) / Star
Buffer Memory	256KByte data buffer
Filtering Address Table	8K MAC address entries
Switch Fabric/Capacity	Up to 12.8Gbps
Forwarding Rate	9.5Mpps
LED Display	PWR (Green): Power, SYS (Green): System 10M Link/ACT (Amber): 10Mbps Link/Activity (per Ethernet port) 100M Link/ACT (Green): 100Mbps Link/Activity (per Ethernet port) 10/100M Link/ACT (Amber): 10/100Mbps Link/Activity (per Gigabit port) 1000M Link/ACT (Green): 1000Mbps Link/Activity (per Gigabit port)
Power	Input: 100~240VAC, 50/60Hz internal power supply
Power Consumption	16.8 W
Dimensions	440 x 140 x 44 mm (17.3 x 5.5 x 1.7 in.)
Weight	2 kg (4.5 lbs.)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Software
Management	SNMP v1, v2c, v3, HTTP/HTTPS Web, Telnet, SSH, console
Spanning Tree	802.1d STP (Spanning Tree Protocol) 802.1w RSTP (Rapid Spanning Tree Protocol) 802.1s MSTP (Multiple Spanning Tree Protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service	802.1p Class of Service Port Based QoS DSCP (Differentiated Services Code Point)
VLAN	Asymmetric VLAN 802.1Q Tagged VLAN & Dynamic GVRP Up to 256 static/dynamic groups
IGMP	Support IGMP Snooping v1/2 Up to 64 multicast entries
Port Mirror	RX, TX, or both
Security	MAC Address learning: ACL L2/L3/L4 User Authentication: 802.1X Port-Based Network Access Control, Local User Database
Frame Size	1522 bytes (max.)
Bandwidth Control	Bandwidth control per port
Flow Control	802.3x Flow Control for Full-Duplex and back pressure for Half-Duplex
Firmware Update	Support TFTP firmware update, TFTP backup and restore, via Web Browser
