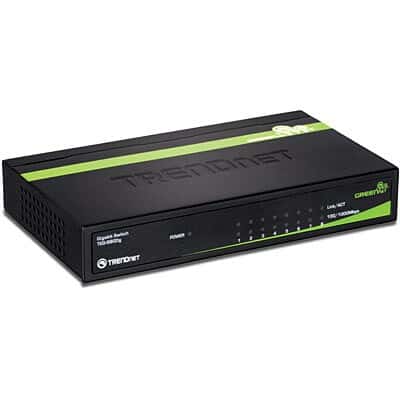

8-Port Gigabit GREENnet Switch
TEG-S80Dg (Version v1.0R)

Internal power supply reduces clutter
GREENnet technology reduces power consumption by up to 70%*
8 x Gigabit Auto-Negotiation ports
Sturdy metal switch with a simple Plug and Play installation

The compact 8-Port Gigabit GREENnet Switch (TEG-S80Dg) provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. An internal power supply eliminates a bulky external power adapter and frees up precious space around electrical power outlets.

Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
GREENnet technology reduces power consumptions
Store-and-Forward switching architecture with non-blocking wire-speed performance
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9612Bytes
Sturdy metal housing
Diagnostic LEDs and Plug & Play

Hardware
Standards	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Media	Ethernet: Cat. 3,4,5, up to 100m Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
Data Rate	Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology	CSMA/CD, Star
Power Consumption	5.1w (max)
Switch Fabric	16Gbps forwarding capacity
Interface	8 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer	128KBytes
Filtering Table	4K entries
Diagnostic LED	Power, Link/ACT, 100Mbps, 1000Mbps
Power	100~240VAC, 50/60Hz Internal universal switching power
Dimension	171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight	450g (15.9oz)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity	5%~90% (non-condensing)
Certifications	FCC, CE
