Introduction

Challenging a new generations of PC mod-ding, the Cooler Master V8 revs up ahead with its tough guard cooling engine. Superior in its design, this wicked-fun V8 monster has enough horsepower to out-perform its duties with any high-performance CPU while under the most critical heat conditions. On top of its stylish finish, the V8 Cooler has quite some rich features. For heat dissipation it is supported with it's smart 180W cooling solution. Modularized by 4 separate set of aluminium fins and linked by 8 diagonal up-rise heat pipes, the V8 structural design allows speedy heat transfer to a large heat dissipation surface. Another excellent key feature of the V8, is its precision fan control. The V8 is compatible with all current CPU sockets, and provides unsurpassed cooling performance.

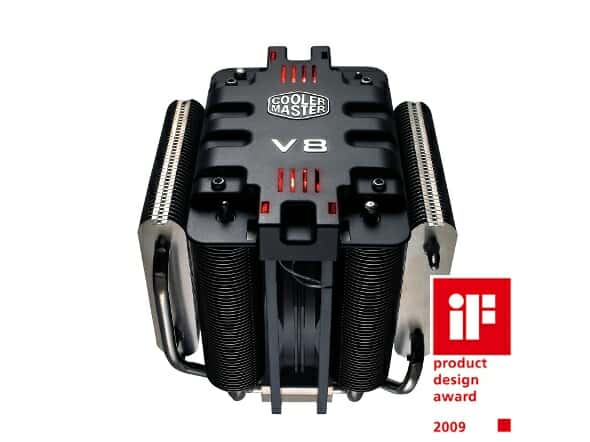

The V8 certainly is one of Cooler Master's innovative hallmark. After receiving an iF Product Design Award in 2008 for CM Sphere, Cooler Master proudly announces an ongoing winning tradition, with V8 winning iF product design award 2009!

Features

3D Measurement Diagram

Specifications

CPU Socket	Intel Socket: LGA1366 / LGA1156 / LGA775 * AMD Socket: AM3 / AM2+ / AM2

CPU Support	Intel: Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron AMD: Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™

Dimensions	120 x 128 x 161.1mm

Weight	865g

Heat Sink Dimensions	120 x 120 x 158mm

Heat Sink Material	Copper Base / Aluminum Fins / 8 Heat Pipes

Heat Pipes Dimensions	ø6mm

Fan Dimension (W / H / D)	120 x 120 x 25mm

Fan Speed	800 - 1800RPM

Fan Airflow	69.69CFM

Air pressure (mmH2O)	2.94mm H₂O

Bearing Type	Rifle Bearing

Fan Life Expectancy	40,000hrs

Fan Noise Level (dB-A)	17 - 21 dBA

Fan Speed Adjustment	Install on PCI Slot

Connector	4-pin

Fan Control	PWM + VR Controller

Rated Voltage	12V

Start Voltage	7V

Operating Voltage	10.38V - 13.2V

Rated Current	0.12A

Input Power	1.44W
