10 USB 2.0 ports

Processor	AMD Phenom™II processor, Socket AM3
Chipset	AMD® 760G + SB700/SB710
Front Side Bus	4.4 GT/s HyperTransport™
Memory	Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB
VGA on Die	Integrated ATI®Radeon™ 3000 graphics
Expansion Slots	1* PCIe x16, 1* PCIe x1, 2* PCI
IDE	1* ATA133 (reserved)
Serial ATA(SATA)/RAID	4* Serial ATAII w / RAID 0, 1, 0+1 JBOD
Audio	5.1 channel HD audio
LAN	Gigabit LAN
IEEE1394	N/A
Back Panel I/O Ports	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x Serial port 1 x VGA port 1 x Audio jack supports 3 jacks 4 x USB 2.0 ports 1 x RJ45 LAN port
Internal I/O Connectors	1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU / System FAN connectors 1 x ATA133 IDE connector(reserved) 1 x CD-in connector 1 x Front Audio header 1 x Front Panel header 3 x USB 2.0 headers support additional 6 ports 4 x Serial ATAII connectors 1 x Intrusion Alarm header 1 x S/PDIF out header 1 x TPM header 1 x COM header 1 x Speaker
BIOS Features	8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Support CD	WHQL Drivers, Adobe Reader 7.07, Direct x 10.0, Norton 2006
Standards/Manageability	PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor	Micro ATX (9.6" x 8.4")

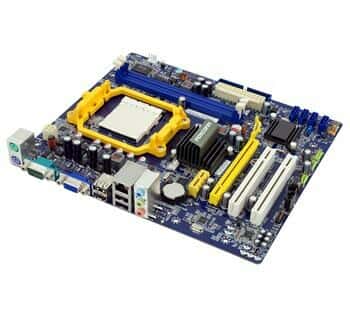

مادربورد فاکسکان A76GMV
