Overview

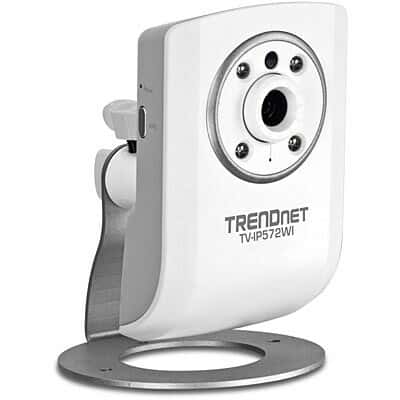

The Megapixel Wireless N Day / Night Internet Camera, model TV- IP572WI, transmits real-time Megapixel video over the Internet. Record indoor video in complete darkness for distances of up to 7.5 meters. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera’s off white housing blends into most environments.

Wi-Fi compliant with IEEE 802.11n standard
Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
One touch WPS wireless connection button
1 x 10/100Mbps Auto-MDIX RJ-45 port (for optional wired connection)
Power and activity LED indicators (can be disabled)
Night vision up to 7.5 meters indoors*
2-way audio: built-in microphone and audio out port for third party speakers
4 x digital zoom
Micro SD card slot*
Manual focus lens
Stream and record up to 4 different video profiles simultaneously
Stream Internet camera video to a 3GPP compatible wireless device
Dynamic DNS support
High quality H.264, MPEG-4, and MJPEG video recording
Supports up to 1280 x 800 pixel resolution at up to 30 frames per second
Image controls: Brightness, contrast, auto gain control, noise reduction, saturation, sharpness, back light control, hue, frequency, flip image vertically, mirror image horizontally, and black / white mode
Event trigger: motion detection or digital input signal
Event Action: send real-time snapshots (up to 3 before and 3 after the event) or video recording (up to 5 seconds before and 10 seconds after the event) to FTP or email
Samba client support to record to a NAS drive
Supports TCP/IP networking, Email, HTTP, Samba and other Internet protocols
System controls:
- Define up to 20 user login accounts
- Set the date and time or synchronize with an NTP server
Supports wireless encryption up to WPA2-PSK
Quick Universal Plug and Play (UPnP) installation
Mounting base and mounting hardware included
SecurView Pro Camera Software Features
- Manage up to 32 cameras
- Compatible with Windows and Microsoft Server 2008
- Multiple language support
- Camera Viewing
  - Preset viewing modes
  - Program custom viewing modes
  - Full screen view
  - Drag and drop live feeds to a new location
  - Program camera cycle viewing sequence
  - Motion detection brings video forward
  - Side, top, and bottom tool bars can be hidden
  - Web based access from smart phones and tablets
- Recording options
  - Program weekly recording schedules
  - Motion detection recording
    - Define motion detection areas of any shape
    - Define motion detection sensitivity
  - Event trigger recording
  - Date and time overlay
  - Mask overlay to conceal sensitive areas
  - Save a single video stream to multiple locations simultaneously
  - Define recording quotas by recording time or space allocation
  - Disk clean feature condenses and optimizes old files
  - Real time recording stats to help manage files
- Search and Playback
  - Navigation timeline provides a quick visual reference to the recorded content
  - Search continuous recordings by motion
  - Search recordings by motion within a defined field (a portion of the viewing area)
  - Time lapse playback search
- Map cameras on an image such as a floor plan
- Map cameras on Google Maps™

Specification

CAMERA
General	Sensor: 1/4” CMOS Sensor Board Lens Focal Length: 4 mm F/No: 1.5 Minimum illumination: 0 lux Focus Depth: 20 cm ~ infinity View: Horizontal: 51.8 degrees Vertical: 33.8 degrees Diagonal: 59.6 degrees Digital Zoom: 4x
Audio	Built-in omni-directional microphone Sensitivity: -40 dB +/- 3 dB (5 meters max) Frequency: 100~20000 Hz S/N: >60 dB Format: PCM / ADPCM External speaker output (speaker sold separately) Two-way audio with echo canceling Day/Night Built-in ICR Night vision (IR) supports up to 7.5 meters*
Hardware
Network	IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet
LED	Power, Link / Act
SD slot	Supports Micro SD (up to 32 GB)
WPS Button	Enable WPS connection
Reset Button	Reset to factory default
Power Consumption	Max 5.05 Watts
Power	Input: 100~240V, 50/60 Hz, 0.2A Output: 5V, 1.2A external power adapter
Dimension	75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)
Weight	120 g (4.2 oz.)
Temperature	Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Humidity	Max 95% (non-condensing)
Certifications	CE, FCC
Requirement
Management Interface	Internet Explorer 7.0 or above Firefox, Safari, and Chrome
To Run Software	Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) Windows Server 2003, 2008
SecurView Pro Software	Channel: supports up to 32 cameras Record / Playback / Motion Detection / Audio Network Protocols IPv4, ARP, TCP, UDP, ICMP DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client HTTP Samba Client PPPoE UPnP, UPnPx LLTD RTP (Real Time Protocol) RTCP (Real Time Control Protocol) RTSP (Real Time Streaming Protocol) 3GPP
Wireless
Standard	IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Frequency	2.4 ~ 2.497 GHz ISM band
Modulation	DQPSK, DBPSK, DSSS and CCK
Antenna	Built-in 2 dBi antenna
Date Rate	802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps
Security	64/128-bit WEP, WPA / WPA2-PSK
Output Power	802.11b: 17 dBm (typical) 802.11g: 15 dBm (typical) 802.11n: 14 dBm (typical)
Receiving Sensitivity	802.11b: -88 dBm @ 11 Mbps 802.11g: -74 dBm @ 54 Mbps 802.11n: -68 dBm @ 150 Mbps
Channels	1~11 (FCC), 1~13(ETSI)
Management
Accounts	Up to 20 user accounts
Remote Login	Remote management supported
Backup / Restore	Save / retrieve configuration files
Log	System log up to 500 entries
Micro SD	View, download, delete files Format and remove Micro SD card
Settings
Image	Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal / vertical), black & white, indoor, outdoor, schedule mode Shutter: 1/3.25s, 1/7.5s, 1/10s, and 1/15s
Video Setting	Profile 1: H.264 / MPEG-4 Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96 Max frame rate: 30fps Profile 2: H.264 / MPEG-4 Resolution: 640 x 400, 320 x 192, 160 x 96 Max frame rate: 30fps Profile 3: MJPEG Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96 Max frame rate: 1280 x 800 @ 5fps, 640 x 400 / 320 x 192 @ 30fps JPEG quality: Low, Fair, Standard, Good, Excellent Profile 4: H.264 / MPEG-4 Resolution: 640 x 400, 320 x 192, 160 x 96 Max frame rate: 30fps RTSP: http://ipcamera_ip/3gpp
3GPP	Video codec: MPEG-4 (no audio support) Protocols: RTSP, RTP
Recording	Resolution: Define individual resolution for up to 4 profiles Required storage: 32 MB (minimum per profile) Recording type: event based (motion detection), continuous, and scheduled
Event Action	Trigger event: motion detection Action: send real-time snapshot or video recording to FTP or email
Port Settings	HTTP port: 80 (default) RTSP port: 554 (default)
Time	Synchronize with NTP server or set time / date manually
