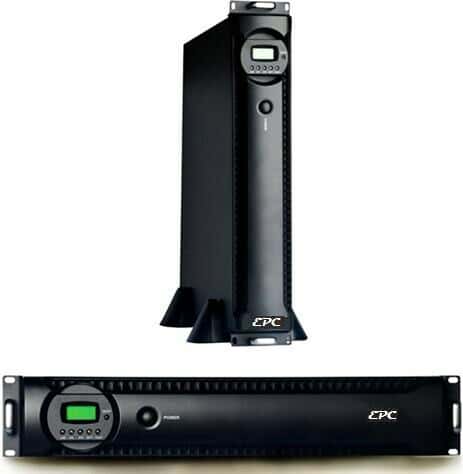

EPC Online Double conversion UPS - 1000VA-3000VA

RM SERIES

Features

· According to IEC 62040 – 3

· Pure sine wave output

· IGBT inverter design

· Excellent electrical performance

· Available in rack-mount

· User friendly, informative LCD

· Input power factor correction

· Unstable generators compatible

· Automatic internal bypass

· Fully digitized microprocessor control

· Cold start function

· LAN support and remote managed via SNMP(optional)

· Battery under voltage, Over load, Output short circuit and UPS powers overheat protections

construction
Declared	EPC-3000 L/S	EPC-2000 L/S	EPC-1000 L/S	model
VA/W	3000/2100	2000/1400	1000/700	power(VA/W)i
	Rack mount:450mm5002U			Dimension WDH
mm	347490198		220400156
Kg	30 / 15	26 / 14	13 / 7	Weight(approx)i
Environmental
i°C	70~20-			Storage temperature
i°C	40~0			Operating temperature
m	3000~300-			Altitude
%	i0~95 without condensation			Relative humidity
IP	20i(IEC60529)i			Degree of protection
dBA	45>			Normal mode acoustic noise at 1m
dBA	45>			Stored energy mode acoustic noise at1m
Electrical input characteristics
Vr.m.s	2202VAC/ Single phase			Nominal AC voltage
Vr.m.s	300~120			Voltage range
HZ	54~46			Frequency range
Electrical output characteristics
Vr.m.s	2202VAC/ Single phase			Nominal AC voltage
Vr.m.s	220±%2i (free running)i			Voltage variation(+/-)i
HZ	50			Nominal frequency
HZ	50±%0.2i (free running)i Be synchronous with input in the mains mode			Frequency variation(+/-)i
	%3i(linear load),<%5(non linear load)i>			Total voltage distortion
	Sinusoidal			Waveform
%	87<			Efficiency
	%150i @ starting , %130 @ 30SecI			Overload capability
ms	Zero			Transfer time
Battery characteristics
VDC	96V DC/8*12V-7AHii	72V DC/6*12V-7AHi	36V DC/3*12V-7AHi	DC voltage(sealed lead acid battery)i
Interface
RS232&SNMP (optional)i
Protections
Overload/Output short circuit/Spike&Surge/Over temperature/Auto battery discharge/Battery over voltage
Electromagnetic compatibility
	IEC62040-2			Immunity & emission

UPS EPC-1000 L/S
