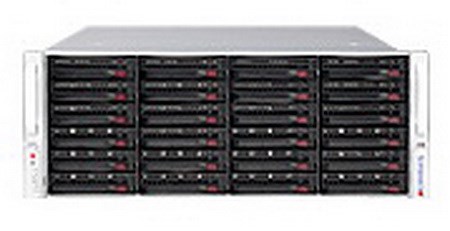

Rackmount 4U w/ Red. 1280W Power Supply

Item Code:10022459
Model:CSE-846BE26-R1K28B
Brand:
Category:

Rackmount 4U w/ Redundant 1280W 80 Plus Platinum Level Certified Power Supply (2x PWS-1K28P-SQ), for up to 13.68in x 13in motherboard maximum size - Includes 24x 3.5in Hot-Swap SAS Drive Bays w/ SES2 (dual-channel), Optionally 2x 2.5in Hot-Swap SAS Drive Bays on rear side of chassis, 7x Full-Height, Full-Length PCI expansion slots, Rails Kit (MCP-290-00057-0N), Air Shroud (MCP-310-49003-0N) - SC846BE26-R1K28B (Black)

Optimized for enterprise-level high-capacity storage applications, Supermicro's SC846 Chassis features 24 hot-swap 3.5" SAS/SATA hard drive trays and 2 fixed internal hard drive bays in a 4U space. The SC846 design offers maximum HDD per space ratio in a 4U form factor, high power efficiency (Gold Level & 85%+), optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped with 1280W (Platinum Level) high-efficiency redundant power supplies and 5 hot-plug redundant cooling fans the SC846 is a reliable and hassle-free maintenance storage system.

• 100% Cooling Redundancy
• High density 4U Storage Chassis
• High Efficiency PS and Storage Capacity
• High Performance SAS2/6GbS Expander
• Power Switch, Reset Switch & 6 LED Indicators
• Can be configured as either HEAD Or JBOD unit
• 1280W Redundant Power Supplies 80 PLUS, Platinum Level (95%)

Main Specifications
• Dimensions (WxDxH) :	7" (178mm) x 17.2" (437mm) x 26" (660mm)
• Enclosure Color :	Black
• Form Factor :	4U chassis support for motherboards up to size 13.68" x 13", E-ATX and ATX
• Product Type :	SuperChassis 846BE26-R1K28B
• Weight :	75 lbs (34.0kg)
• Compatible Processors :	Supports dual, single Intel® / AMD processors
System Cooling
• Fans :	3x 80mm Hot-swap 4-pin PWM Fans - 2x 80mm Rear-exhaust 4-pin PWM Fans
Drive Bays
• Hot-swap :	24x 3.5" Hot-swap SAS Drive Bays w/ SES2 (dual-channel) - SAS or enterprise SATA HDD only recommended
• Optional :	2x 2.5" Hot-swap SAS Drive Bays on rear side of Chassis
Expansion / Connectivity
• Expansion Slots Total (Free) :	7x Full-height, Full-length PCI expansion slots
SAS/SATA Backplane
• SAS/SATA Backplane :	4U Dual Expander Backplane, features: SAS2 compliance, Scalability through cascading, 6Gb support, Inband SES-2 Enclosure Management, SAS/SATA support, Dual input/output SFF 8087 connectors
Front Panel
• Buttons :	Power On/Off button, System Reset button
• LEDs :	Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED
System Monitoring
• System Monitoring :	Chassis intrusion switch
Power Supply
• Certification :	80 PLUS Platinum
• Power Supply :	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
Regulatory (Power Supply)
• Power Supply Safety / EMC :	USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant, CCC
Standard Parts List
• Accessory :	MCP-280-82601-0N
• Air Shroud :	MCP-310-49003-0N
• Backplane :	BPN-SAS2-846EL2
• Cable(s) :	CBL-0071L, CBL-0160L, CBL-0217L
• Chassis :	CSE-846BE26-R1K28B
• Drive Trays :	MCP-220-00075-0B, MCP-290-84608-0N
• Fan(s) :	FAN-0125L4, FAN-0127L4
• Mounting Rail :	MCP-290-00057-0N, MCP-410-00007-0N
• Power Supply :	PWS-1K28P-SQ / PDB-PT846-2824
• Rear Window :	MCP-240-84602-0N
Environmental Parameters
• Operating Temperature :	Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F)
	Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F)
	Operating Relative Humidity Range 8% ~ 90% (non-condensing)
	Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

کیس سرور سوپرمایکرو Rackmount 4U w/ Red. 1280W Power Supply CSE-846BE26-R1K28B
