Product type (AE) Motherboard
Form factor Micro ATX
Width 9.0 in
Depth 9.6 in
Compatible Processors Phenom X4 , Phenom X3 , Sempron , Athlon 64 X2 , Athlon 64
64-bit Processor Compatibility Yes
Mainboard processor socket Socket AM2+
Mainboard / Multi-Core Support Dual-Core / Triple-core / Quad-core
Chipset Type AMD 740G
Data bus speed 1000.0 MHz
Storage key information Serial ATA-300 (RAID) , ATA-133
Processor
Installed Qty (Max Supported) 0.0 ( 1.0 )
Memory
Cache Memory Type None
Supported RAM Technology DDR2 SDRAM
RAM Installed ( Max ) 0.0 MB / 4.0 GB (max)
Supported RAM Speed PC2-6400 , PC2-4300 , PC2-5300
RAM Features Two DDR channels
Video
Graphics Controller ATI Radeon 2100
Audio
Audio Output Sound card
Audio codec Realtek ALC888
Sound Output Mode 7.1 channel surround
Audio output compliant standards High Definition Audio
Telecom / Networking
Modem None
Networking Network adapter - Realtek RTL8111C - Fast Ethernet , - Gigabit Ethernet , - Ethernet
Features
BIOS Features MSI Dynamic Overclocking Technology (D.O.T.)
Hardware Features Chassis intrusion detection , AMD Cool 'n' Quiet Technology , Trusted Platform Module (TPM)
Expansion / Connectivity
Expansion Slots Total (Free) 2.0 PCI Express x16 ( 1.8 V ) - DIMM 240-pin , 1.0 PCI ( 3.3 V/ 5 V ) - Socket AM2 , 2.0 PCI Express x1 , 1.0 Memory , 1.0 Processor
Storage Interfaces ATA-133 - connector(s): 1 x 40pin IDC - 4.0 device(s) - RAID 0 / RAID 1 / RAID 0+1 , Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 2.0 device(s)
Interfaces 1.0 x Keyboard - Generic - 34 pin IDC , 1.0 x Storage - VGA - RJ-45 , 1.0 x Display / video - Floppy interface - 15 pin HD D-Sub (HD-15) , 1.0 x Mouse - Ethernet 10Base-T/100Base-TX/1000Base-T - 6 pin mini-DIN (PS/2 style) , 4.0 x Network - Generic - 4 pin USB Type A , 1.0 x Hi-Speed USB - 6 pin mini-DIN (PS/2 style)
Additional connectors (optional) 6 x Hi-Speed USB
Miscellaneous
Software Included MSI Live Update 3 , Drivers & utilities , MSI Dual Core Center

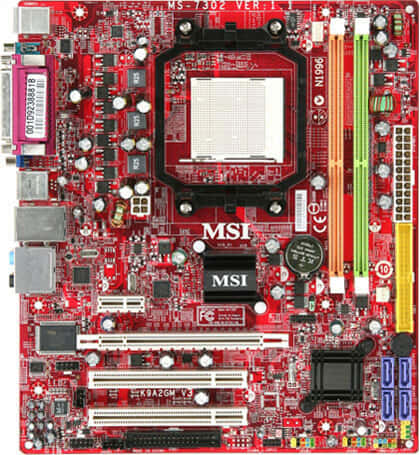

مادربورد ام اس آی K9A2GM-F V3
