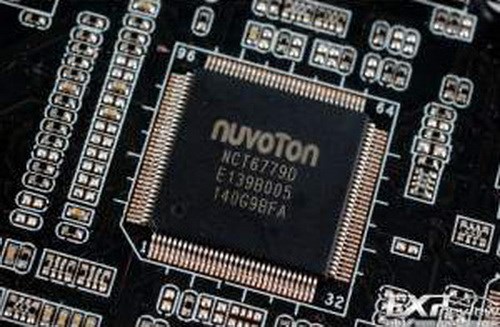

The NCT6779D is a member of Nuvoton’s Super I/O product line. The NCT6779D monitors several critical
parameters in PC hardware, including power supply voltages, fan speeds, and temperatures. In terms of
temperature monitoring, the NCT6779D adopts the Current Mode (dual current source) and thermistor sensor
approach. The NCT6779D also supports the Smart Fan control system, including “SMART FANTM I and SMART
FANTM IV, which makes the system more stable and user-friendly.
The NCT6779D provides two high-speed serial communication port (UART), which includes a 16-byte
send/receive FIFO, a programmable baud rate generator, complete modem-control capability, and a processor
interrupt system. The UART supports legacy speeds up to 115.2K bps as well as even higher baud rates of 230K,
460K, or 921K bps to support higher speed modems.
The NCT6779D supports the PC-compatible printer port (SPP), the bi-directional printer port (BPP), the enhanced
parallel port (EPP) and the extended capabilities port (ECP). The NCT6779D supports keyboard and mouse
interface which is 8042-based keyboard controller.
