	720P High Definition Resolution

<	Supports 2 Simultaneous HD Streams

<	H.264/MPEG-4/MJPEG Triple Codec

<	Hidden IR LEDs for Night Viewing up to sixteen (16) feet.

<	Supports Motion Detection, Push Notifications, and Ethernet Lost

<	Built-in Microphone & External Audio Out

<	Free App for iPhone®, iPad®, and Android™ devices

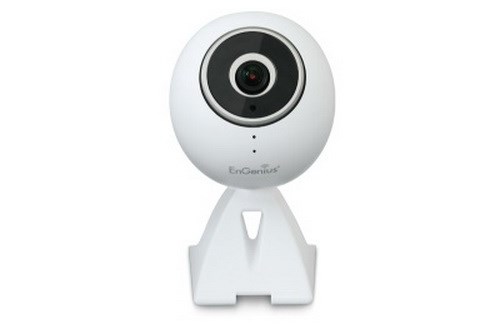

As part of the EnGenius Personal Cloud Series Solution of routers, access points, cameras, and lifestyle apps, the EDS1130 is a 720P HD IoT IP Network Home Security Camera that enables users to monitor their home. It features a 1-Megapixel resolution with an IR-Cut filter for day/night mode for monitoring rooms, entryways, patios, and more. It is capable of streaming up to 2 codecs simultaneously with up to 30 frames per second using H.264, MPEG-4, or Motion JPEG. The EDS1130 also includes hidden IR LEDs for night viewing up to sixteen (16) feet in low-light environments for securing locations such as entryways, patio doors, side doors, windows, and more.

With the EDS1130 and EnGenius EnViewer™ mobile app available as a free download on the Apple® Store and Google™ Play Store, users can remotely monitor the care of children, elderly family members, or even pets while on the go. The camera’s 2-Way audio capability with built-in microphone and audio output jack enables the camera to be connected to a speaker system enabling users to speak directly to caregivers or family members. Event notifications, triggered by the camera’s motion sensor feature, can also be sent to mobile devices immediately through the EnViewer app. In the situation that an event triggers the camera, it can be also configured to sound a siren alarm through the connected speakers.

The EDS1130 can also snap JPEG images or record video clips with its included recording software or on its video home page and send it directly to any connected DLNA storage device, a computer, network attached storage, or to a micro SD/SDHC card in the camera’s built-in micro SD/SDHC card slot capable of supporting up to 32 GB SD/SDHC cards (SD card not included).

Camera
Image Sensor:
1/4" Megapixel Progressive Scan CMOS
Lens:
Board Lens
Fixed Focus, 4 mm @ F2.4
Day/Night: Built-in Mechanical IR-Cut Filter
Minimum Illumination:
Color (IR-off): 0.2 Lux/F = 1.8
B/W (IR-on): 0 Lux/F = 1.8
IR Illuminator:
6 pcs IR Illuminators, effective up to 16.4 feet / 5 meters
Power consumption: Up to 7W

Video
Compression: H.264/MPEG/MJPEG
Simultaneous Streams: 2x Video Streams
Frame Rates:
H.264: Up to 30 fps at 1280 x 720
MPEG-4: Up to 30 fps at 1280 x 720
MJPEG: Up to 30 fps at 1280 x 720
Image Settings:
Adjustable Image Size, Quality & Bit Rate
Configurable Brightness, Sharpness, Contrast, Saturation, White Balance, & Exposure
AGC/AWB/AES
Flip & Mirror
Time Stamp & text Caption Overlay
Manual/Auto Day & Night

Audio
Audio Streaming: 2-Way
Compression: G.711
Input/Output Gain Control
Interface:
Built-in Microphone
External Audio Out

Networking
Network:
10/100 Mbps Ethernet
RJ-45
Built-in Wi-Fi IEEE 802.11b/g/n (150 Mbps)
Built-in High Sensitive Internal Wireless Antenna
EnGenius DDNS
Auto NAT Pass Through/UPnP Traversal
WPS Settings
Protocols:
IPv4, TCP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, RTP, RTSP, PPPoE, SMB

Security
Password Protection
IP Address Filtering
User Access Log
Wireless Encryption: WEP, WPA, WPA2, WPS Button
2-Level Accounts:
Admin/Guest

Alarm & Event Recording
Alarm:
Motion Detection
Audio Detection
Event Actions:
File Upload to FTP, SMB, SMTP, Mobile App., EnGenius Cloud Router
Notification:
Email
Push Notifications (For Mobile Apps only)
Video Playback (PC/iPhone/iPad/Android)
EnGenius Smart Recording (Only for EnGenius Cloud Series Routers)

Mobile Apps
Supports:
iPhone/IPad/Android Devices

Environmental & Physical

Temperature Range
Operating: -32º~104ºF/-0ºC~40ºC
Storage: /-4Fº~140ºF/-20ºC~60ºC

Humidity (non-condensing)
Operating: 95% or less
Storage: 95% or less

Physical
Local Storage
SDHC Slot
Power Input:
12V/1A

Certifications
FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Product features, specifications, or industrial design of the camera product are subject to change without notice, and actual product appearance may differ from what is depicted on product packaging, on websites, or in marketing material. EnGenius and EnViwer are trademarks or registered trademarks under EnGenius Technologies Inc. Other trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications,. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. In the United States of America, use of video or audio equipment for recording the image of a person without their knowledge and consent is prohibited in certain states, commonwealths, municipalities, or jurisdictions. The enduser assumes all liability for compliance with applicable state, local, and federal laws. End-users in other countries assume all liability for compliance in their country. EnGenius Technologies, Inc. is not responsible or liable for any property loss or damage in any site or deployment where EnGenius camera products are used.

Dimensions, Weight & Package Contents

Device Dimensions & Weight (with Stand)
Length: 1.93 inches
Width: 2.99 inches
Height: 4.69 inches
Weight: 0.23 lbs

Package Contents
EDS1130 IP Network Network Camera
12V/1A Power Adapter
RJ-45 Ethernet Cable
UID Cable
Quick Installation Guide
