Tech specs

Technical Data

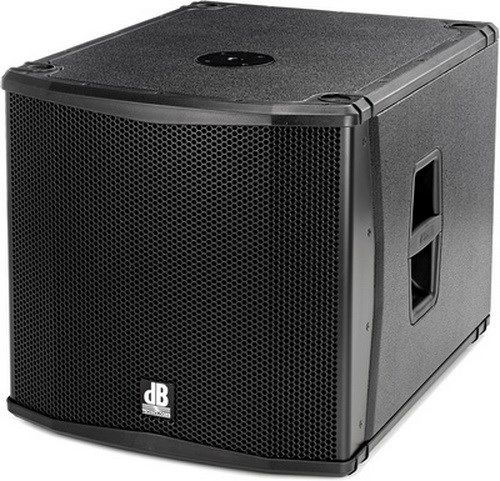

Speaker Type: Semi Horn-loaded Active Subwoofer

Acoustical data

Frequency Response [-10dB]: 35 - 150 Hz

Max SPL: 133 dB

Directivity: omnidirectional

LF: 15"

Voice Coil LF: 3"

Amplifier

Amp Technology: Digipro G3™

Amp Class: Class D

Power PRG: 1000 W

Peak Power: 1400 W

Power supply: 700 W SMPS with PSU Auto-range (110V~ and 220V~)

Processor

Controller: DSP 56 bit

AD/DA Coverters: 24 bit/48 kHz

Limiter: Dual Active, RMS/Peak, Thermal

Crossover Frequency: 90, 120 Hz

LF-Xover out slope: 24 dB/Octave

Controls: X-Over frequency selection, Delay switch up to 4.5ms, Phase inversion switch, Outputs mode switch (Link/X-over), Mini-USB type “B” port (service data)

Input

Signal Input: 2x XLR

Signal Output: 2x XLR X-Over Out/Link Out

Mechanics

Housing: Birch plywood, Black PVC cover

Width: 524 mm (20.6 in)

Height: 511 mm (20.1 in)

Depth: 695 mm (27.4 in)

Weight: 31.5 kg (69.4 lbs)
