Overview

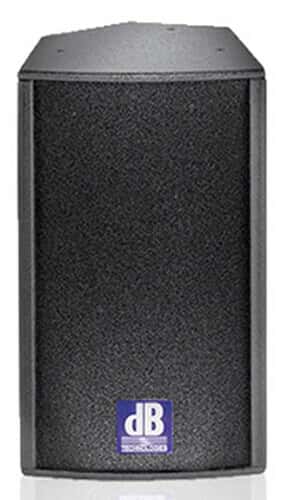

The ARENA 8 is equipped with a 8" woofer and a 1" driver with a rotatable 90°x70° constant directivity horn.

The unit can handle 200W/RMS power and provides sound pressure levels of up to 122dB.

The ARENA 8 is recommended for speech and background music, as a very compact stage monitor or combined with the ARENA SW15 subwoofer as a small PA system.

Tech specs

Technical Data

Speaker Type: 2-Way Passive Speaker

Acoustical data

Nominal Power Rating: 200 W/RMS

Program Power Rating: 400 W

Impedance: 8 Ohms

Frequency Response [+/- 3dB]: 100 - 19.000 Hz

Max SPL: 122 dB

HF: 1 “

Driver Protection: PTC

Directivity: 90x70 °

Horn: CD Horn

Rotatable Horn: YES

Crossover Frequency (passive): 2100 Hz

LF: 8 “

Voice Coil LF: 1.5 “

Input

Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing: Multiplex birch plywood

Pole mount:: 36mm

Angles Up: Monitor use 45 °

Rigging Points: 12 x M8

Width: 270 mm (10.8 in)

Height: 458 mm (18.32 in)

Depth: 270 mm (10.8 in)

Weight: 9.3 kg (20.5 lbs
