Overview

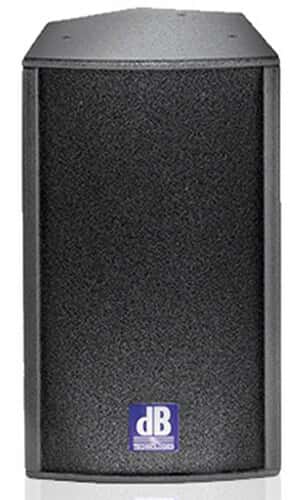

A frequency response from 80Hz to 19Khz, a 12“ woofer and a highquality 1“ compression driver with a 90°x40° constant directivity horn, makes the ARENA 12 the top all-rounder within the series.

Up to 127dB sound pressure level can be reached at 800 Watt input power.

For small venues usable as a full range enclosure but also to be driven together with ARENA SW15 or ARENA SW18 as a highprofile compact PASystem.

Tech specs

Technical Data

Speaker Type: 2-Way Passive Speaker

Acoustical data

Nominal Power Rating: 400 W/RMS

Program Power Rating: 800 W

Impedance: 8 Ohms

Frequency Response [+/- 3dB]: 80 - 19.000 Hz

Max SPL: 127 dB

HF: 1 “

Driver Protection: PTC

Directivity: 90x40 °

Horn: CD Horn

Rotatable Horn: YES

Crossover Frequency (passive): 2000 Hz

LF: 12 “

Voice Coil LF: 2 “

Input

Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing: Multiplex birch plywood

Pole mount:: 36mm

Angles Up: Monitor use 45 °

Rigging Points: 12 x M10

Width: 379 mm (15.16 in)

Height: 631 mm (25.24 in)

Depth: 378 mm (15.12 in)

Weight: 17.8 kg (39.24 lbs)
