Tech specs

Technical Data

Speaker Type: 2-Way Active Stage Monitor

Acoustical data

Frequency Response [-6dB]: 63 - 16.000 Hz

Frequency Response [-10dB]: 59 - 18.000 Hz

Max SPL: 136 dB

HF: 1.4"

Type HF: Neodymium

Voice Coil HF: 2.5"

Horn: Aluminum rotatable horn

LF: 12"

Type LF: Neodymium

Voice Coil LF: 4"

Directivity: 90x40°

Amplifier

Amp Technology: Digipro® G2

Amp Class: Class D

Power RMS: 1500 W

Peak Power: 3000 W

LF: 750 W RMS @4 Ohm

HF: 375 W RMS @8 Ohm

Cooling: Single fan

Processor

Controller: DSP 56 bit

AD/DA Converter: 24 bit/48 kHz

System Presets: Flat EQ, TH EQ

Limiter: Dual active, RMS/Peak, Thermal

Crossover Frequency LF-HF: 1070 Hz

Slope MF-HF: 24 dB/Octave

Mechanics

Housing: Multiplex birch plywood - Polyurea painting

Advanced features: Rotatable front panel (left or right monitor customization)

Angles Up: 35°, 55°

Handles: 1x left side, 1x right side

Width: 670 mm (26.4 in)

Height: 325 mm (12.8 in)

Depth: 405 mm (15.9 in)

Weight: 24.5 kg (54 lbs)

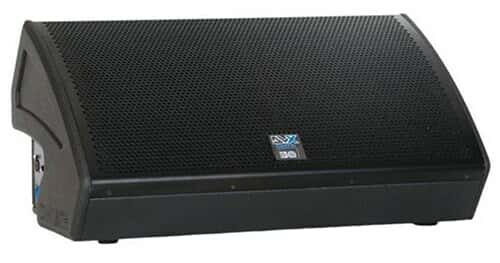

اسپیکر(باند) اکتیو دی بی تکنولوژیز DVX DM 12 TH Stage Monitor
