Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Celeron® Dual-Core processors, Socket T (LGA775)
Supports Intel® next generation 45nm Multi-Core processors
1600(oc**)1333/1066/800 MHz (FSB)
Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs, Max. 16GB
2* PCIe2.0 x16, 2* PCIe2.0 x1, 2* PCI
1* ATA133, 2* 1394a, 6* SATA II, 1* eSATA
7.1 channel HDA, Realtek® ALC888GR
Gigabit LAN, Realtek® RTL8111B / RTL8111D
12 USB 2.0 ports

Processor:	Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Celeron® Dual-Core processors, Socket T (LGA775)
Chipset:	Intel® P45 + ICH10R
Front Side Bus:	1600(oc**)1333/1066/800 MHz (FSB)
Memory:	Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs, Max. 16GB
VGA on Die:	Discreted
Expansion Slots:	2* PCIe2.0 x16, 2* PCIe2.0 x1, 2* PCI
IDE:	1* ATA133,
Serial ATA(SATA)/RAID:	6* SATAII + 1* eSATA w / RAID 0, 1, 10
Audio:	7.1 channel HDA by Realtek® ALC888GR
LAN:	Gigabit LAN by Realtek® RTL8111B / RTL8111D
IEEE1394:	2* 1394a connectors (rear panel x1, pin header x1)
Back Panel I/O Ports:	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x S/PDIF Out Coaxial port 1 x eSATA port 1 x IEEE1394a port 1 x Audio jack supports 6 jacks 4 x USB 2.0 ports 1 x RJ45 LAN ports 1 x Serial port
Internal I/O Connectors:	1 x ATX 24-pin power connector 1 x 8-pin ATX 12V power connector 3 x 4-pin CPU / System /NB smart fan connectors 1 x Floppy disk drive connector 1 x CD-in connector 1 x Front Panel header 1 x Buzzer 4 x USB 2.0 headers support additional 8 ports 6 x Serial ATAII connectors 1 x ATA133 IDE connector 1 x Intrusion Alarm header 1 x Front Audio header 1 x 1394a header 1 x IrDA header
BIOS Features:	8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD:	Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability:	PCI 2.3, USB2.0, DMI 2.5
Special Features:	** Achieved by overclocking * Designed with 100% Solid Capacitors * 2* PCIe x16 Gen2.0 with ATI CrossFireX™ support
Form Factor:	ATX (12" x 9.6")

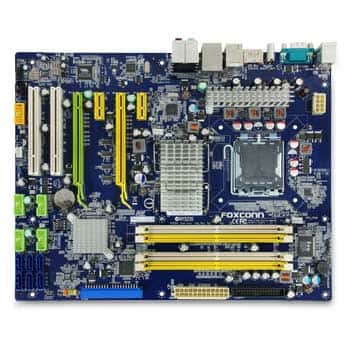

مادربورد فاکسکان P45A-S
