Specifications

CPU	AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors Supports 45nm CPU AMD® 140W CPU Support AMD Cool 'n' Quiet™ Technology
Chipset	AMD 880G/SB850
System Bus	Up to 5200 MT/s ; HyperTransport™ 3.0
Memory	4 x DIMM, Max. 16 GB, DDR3 2000(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory Dual Channel memory architecture Due to CPU spec., AMD 100 and 200 series CPUs support up to DDR3 1066Mhz. With ASUS design, this motherboard can support up to DDR3 1333MHz. Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard. **Refer to www.asus.com for the memory QVL (Qualified Vendors Lists)
Expansion Slots	1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 1 x PCI
VGA	Integrated ATI Radeon™ HD 4250 GPU - Supports HDMI™ Technology with max. resolution up to 1920 x 1080 - Supports Dual-link DVI with max. resolution up to 2560x1600 @60Hz - Supports D-Sub with max. resolution 2048x1536 @85Hz - Hybrid CrossFireX™ Support - Dual independent displays support with HDMI / DVI and D-Sub - Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1 - Hardware Decode Acceleration for H.264,VC-1, and MPEG-2 - Maximum shared memory of 1GB
Storage	SB850 Chipset 6 xSATA 6.0 Gb/s ports Support RAID 0,1,5,10 VIA VT6415 PATA controller 1 xUltraDMA 133/100 for up to 2 PATA devices
LAN	Realtek® RTL8111E Gigabit LAN controller featuring AI NET 2
Audio	ALC892 8-Channel High Definition Audio CODEC - Supports 192kHz/ 24bit BD Lossless Sound - Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking (HD mode only) - Optical S/PDIF Out ports at back I/O
USB	- 2 x USB 3.0 ports (blue, at the back panel) - 12 x USB 2.0/1.1 ports (8 ports at mid-board, 4 ports at back panel)
ASUS Unique Features	ASUS Xtreme Design ASUS Hybrid Processor -- TurboV EVO - Turbo Unlocker, Auto Tuning, TurboV, CPU Level UP and GPU Boost ASUS Hybrid Switch - Core Unlocker ASUS Hybrid OS -- Express Gate ASUS Power Solutions - 4+1 Phase Power Design - ASUS Anti-Surge Protection - ASUS EPU ASUS Exclusive Features - MemOK! - Anti-surge protect ASUS Quiet Thermal Solution - ASUS Fanless Design: Heat sink solution - ASUS Fan-Xpert - ASUS Stack Cool 3 ASUS EZ DIY - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Overclocking Features	Precision Tweaker 2 - vCore: Adjustable CPU voltage at 0.003125V increment - vChipset (VDDNB): Adjustable chipset voltage at 0.003125V increment - vDIMM: Adjustable DRAM voltage at 0.015V increment SFS (Stepless Frequency Selection) - FSB tuning from 100MHz up to 550MHz at 1MHz increment - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
Special Features	100% All High-quality Conductive Polymer Capacitors
Back Panel I/O Ports	1 x PS/2 Keyboard/Mouse Combo port 1 x DVI 1 x D-Sub 1 x HDMI 1 x S/PDIF Out 1 x LAN(RJ45) port 8 -Channel Audio I/O 2 x USB 3.0 ports (blue) 4 x USB 2.0/1.1 ports
Internal I/O Connectors	4 x USB 2.0 connectors (8 ports) 1 x COM connector 1 x IDE connector 6 x SATA 6Gb/s connectors 1 x CPU Fan connector 1 x Chassis Fan connectors 1 x Front panel audio connector 1 x S/PDIF Out Header 1 x Core Unlocker Switch 1 x MemOK! Button 1x LPT connector 24-pin ATX Power connector 4-pin ATX 12V Power connector 1 x System panel connector
BIOS	16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability	WOL by PME,WOR by PME,WOR by Ring,PXE
Accessories	1 x Ultra DMA 133/100/66 cable 2 x Serial ATA 3 Gb/s cables 2 x Serial ATA 6 Gb/s cables 1 x Q-Connector (retail version only) 1 x Q-Shield 1 x User's manual
Support Disc	Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities
Form Factor	uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

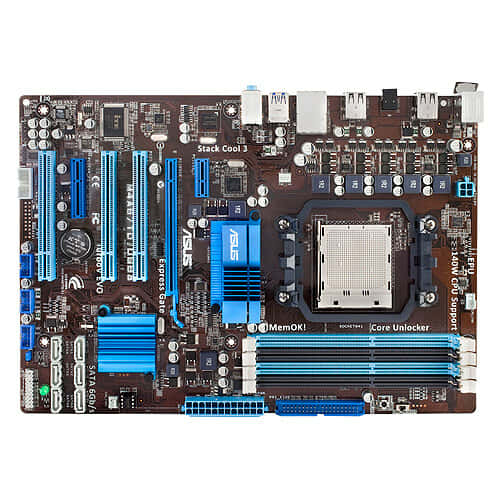

مادربورد ایسوس M4A87TD/USB3
