Brand

ASUS

Model

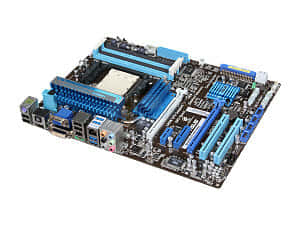

M4A89GTD PRO/USB3

Supported CPU

CPU Socket Type

AM3

CPU Type

Phenom II / Athlon II / Sempron 100 Series
AMD 140W CPU Support

FSB

2600MHz Hyper Transport (5200 MT/s)

Chipsets

AMD 890GX

AMD SB850

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2000(O.C.)/1333/1066

Maximum Memory Supported

16GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 2.0 x16

2 (x16 or x8, x8)

PCI Express x4

1

PCI Express x1

1

PCI Slots

2

Storage Devices

PATA

1 x ATA133 2 Dev. Max

SATA 6Gb/s

6 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

ATI Radeon HD 4290

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111E

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1

Video Ports

D-Sub + DVI

HDMI

1 x HDMI

USB 1.1/2.0

4 x USB 2.0

USB 3.0

2 x USB 3.0

IEEE 1394

1 x IEEE 1394a

eSATA

1 x eSATA 3Gb/s

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Onboard USB

Onboard USB

4 x USB connectors support additional 8 USB ports

Onboard 1394

Onboard 1394

1 x 1394a

Physical Spec

Form Factor

ATX

Dimensions

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

Core Unlocker – Turn on True Core Performance

Turbo Key II for Easy O.C. – One-Touch Button for Instant Performance Boost

GPU Boost – Real-Time Overclocking of iGPU

TurboV EVO – Extreme Yet Stable CPU Overclocking

ASUS Express Gate – Instant Online! Instant Fun!

ASUS EPU Engine – Energy Efficiency & Noise Reduction

USB 3.0 support
